5000 Series Aluminium Plate Aluminum Alloy Sheet for Construction - 5052/5754 - mirror finish aluminum sheet


5052 aluminum alloy sheet use: automotive aluminum alloy, 3C products, computer brackets, high-end curtain wall panels, high-end oxidizing materials, cans, lids, shutters, trolleys, aluminum furniture, door panels / door handles, signs, decoration, etc.








Product introduction
Magnesium is the main alloying element in the 5052 alloy aluminum plate. It is the most widely used rust-proof aluminum. The alloy has high strength, especially fatigue resistance: high plasticity and corrosion resistance, no heat treatment strengthening, semi-cold It has good plasticity during hardening, low plasticity during cold work hardening, good corrosion resistance, good weldability, poor machinability and polishing.
aluminum she
Mechanical properties:Tensile strength (σb): 170~305MPa
Conditional yield strength σ0.2 (MPa)≥65
Modulus of elasticity (E): 69.3~70.7Gpa
The annealing temperature was 345 °C.


Product Description
Tempering:O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34H36,H38,H111,H112,H114,H 116,H321
Surface:mill,bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Thickness: 0.15-500mm;
Width: 20-1300mm;
Length: 500-6000mm or above;
Thickness tolerance: + 0.05mm;
Width / length tolerance: + 2mm;
Minimum quantity: 5-10 tons;


aluminum plate engraving


aluminum plate engraving in china

quality aluminum plate engraving


aluminum circle plate

Market application
5052 alloy aluminum plate is widely used in the manufacture of fuel tanks, oil pipes and transportation vehicles, ship sheet metal parts, instruments, street lamp brackets and rivets, hardware products, electrical enclosures, molds, etc. It can also be used for low load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as fuel tanks, gasoline or lube oil conduits, various liquid containers and other small load parts made with deep drawing: Wire is used to make rivets.

foil aluminum plates

       Car Lightweight                                  fuel tank                                      Aluminum bin                           Aluminum mold


Five Advantages

  1. Complete product range: Has a complete range of aluminum, aluminum, aluminum tape products
  2. 15 years of production and sales experience: Customized products can be cut as required, good quality and good price
  3. Excellent distribution team: The company has 10 delivery vehicles, ready to ship
  4. Sufficient spot sale: Stock spot nearly 60,000 tons

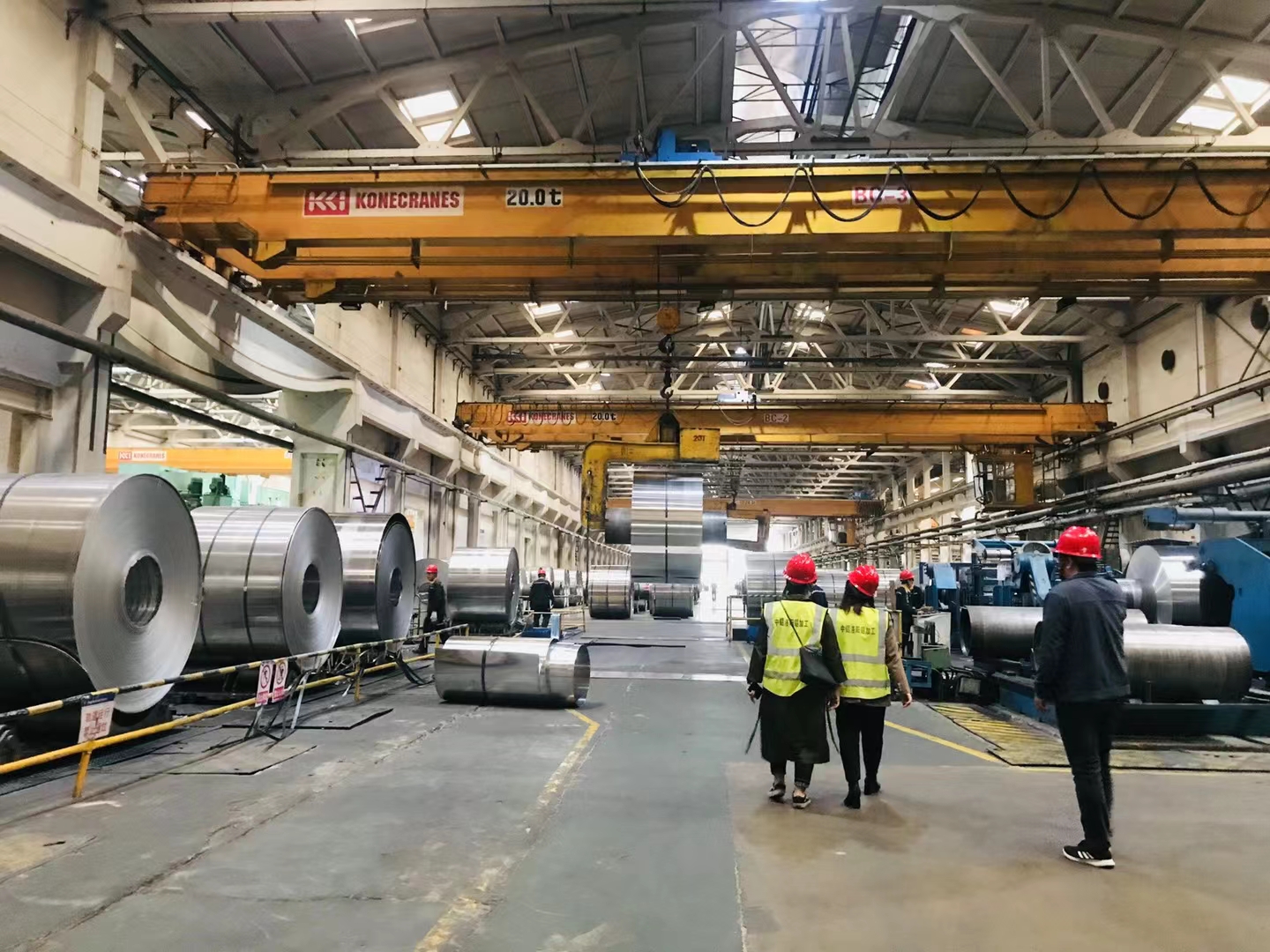

  5. Production equipment and production line: The company has a slitter and tablet scale precision
mirror finish aluminum sheet

Chemical Compositon of Aluminum

Grade Chemical Composition(%) Others AI
Si Fe Cu Mn Mg Cr Zn Ti Single Tol 99.5
1050 0.25 0.4 0.05 0.05 0.05 - 0.05 0.03 0.03 - 99.6
1060 0.25 0.35 0.05 0.03 0.03 - 0.05 0.03 0.03 - 99.7
1070 0.2 0.25 0.04 0.03 0.03 - 0.04 0.03 0.03 - 99
1100 0.95 0.05~0.4 0.05 - - 0.1 - 0.05 0.15 Remains
3003 0.6 0.7 0.05~0.2 1.0~1.5 - - 0.1 - 0.05 0.15 Remains
3004 0.3 0.7 0.25 1.0~1.5 0.8 - 0.25 - 0.05 0.15 Remains
3005 0.6 0.7 0.3 1.0~1.5 0.2~0.6 0.1 0.25 0.1 0.05 0.15 Remains
3105 0.6 0.7 0.3 0.3~0.8 0.2~0.8 0.2 0.4 0.1 0.05 0.15 Remains
5052 0.25 0.4 0.1 0.1 2.2~2.8 0.15~0.35 0.1 - 0.05 0.15 Remains
5083 0.4 0.4 0.1 0.4~0.1 4.0~4.9 0.05~0.25 0.25 0.15 0.05 0.15 Remains
5754 0.4 0.4 0.1 0.5 2.6~3.6 0.3 0.2 0.15 0.05 0.15 Remains
5005 0.3 0.7 0.2 0.2 0.5~1.1 0.1 0.25 - 0.05 0.15 Remains
5086 0.4 0.5 0.1 0.2~0.7 3.5~4.5 0.05~0.25 0.25 0.15 0.05 0.15 Remains
6063 0.2~0.6 0.35 0.1 0.1 0.45~0.9 0.1 0.1 0.1 0.05 0.15 Remains
6041 0.4~0.8 0.7 0.15~0.4 0.15 0.04~0.35 0.04~0.35 0.25 0.15 0.05 0.15 Remains

Market ApplicationMarket application
5052 alloy aluminum plate is widely used in the manufacture of fuel tanks, oil pipes and transportation vehicles, ship sheet metal parts, instruments, street lamp brackets and rivets, hardware products, electrical enclosures, molds, etc. It can also be used for low load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as fuel tanks, gasoline or lube oil conduits, various liquid containers and other small load parts made with deep drawing: Wire is used to make rivets.


Car floor foil aluminum plates

Brushed aluminum plate for notebook back

Dock ladder foil aluminum plates

cooking utensils

Electric appliance aluminum circle sheet suppliers

Heavy truck air reservoir

Toolbox aluminum circle sheet suppliers

Silo for aluminum
