Coil Aluminum Panel Aluminum Circle Plate Manufacturers

5052 Aluminum Strip Used For Tank/Side Light Channelume Aluminum Strip for LED Sign Letter &Signboard

Ze 'ao is a large modern aluminum processing enterprise integrating scientific research, processing and manufacturing.The company can produce 1-8 series aluminum foil products, complete specifications, huge capacity, to meet your personalized processing needs.

Product introduction

Magnesium is the main alloying element in the 5052 alloy aluminum plate. It is the most widely used rust-proof aluminum. The alloy has high strength, especially fatigue resistance: high plasticity and corrosion resistance, no heat treatment strengthening, semi-cold It has good plasticity during hardening, low plasticity during cold work hardening, good corrosion resistance, good weldability, poor machinability and polishing.
aluminum she
Mechanical properties:Tensile strength (σb): 170～305MPa
Conditional yield strength σ0.2 (MPa)≥65
Modulus of elasticity (E): 69.3~70.7Gpa
The annealing temperature was 345 °C.

Product Description
Tempering:O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34H36,H38,H111,H112,H114,H 116,H321
Surface：mill,bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Thickness: 0.15-500mm;
Width: 20-1300mm;
Length: 500-6000mm or above;
Thickness tolerance: + 0.05mm;
Width / length tolerance: + 2mm;
Minimum quantity: 5-10 tons;

Coil Aluminum Panel

Market application
5052 alloy aluminum plate is widely used in the manufacture of fuel tanks, oil pipes and transportation vehicles, ship sheet metal parts, instruments, street lamp brackets and rivets, hardware products, electrical enclosures, molds, etc. It can also be used for low load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as fuel tanks, gasoline or lube oil conduits, various liquid containers and other small load parts made with deep drawing: Wire is used to make rivets.

Coil Aluminum Panel

Car Lightweight fuel tank Aluminum bin Aluminum mold

Five Advantages

Complete product range: Has a complete range of aluminum, aluminum, aluminum tape products
15 years of production and sales experience: Customized products can be cut as required, good quality and good price
Excellent distribution team: The company has 10 delivery vehicles, ready to ship
Sufficient spot sale: Stock spot nearly 60,000 tons
Production equipment and production line: The company has a slitter and tablet scale precision

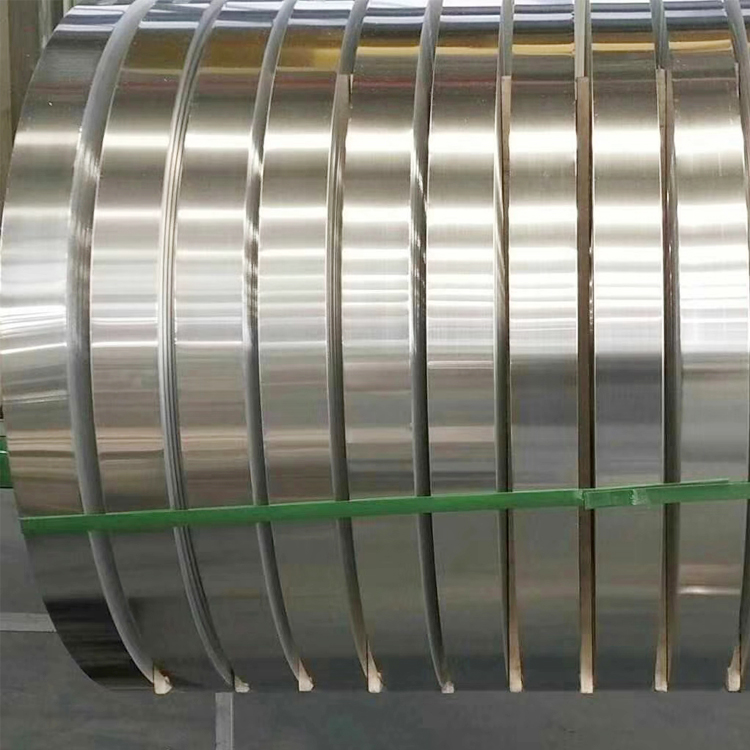

aluminum strip

Chemical Compositon of Aluminum

Grade	Chemical Composition(%)								Others		AI
Grade	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Single	Tol	99.5
1050	0.25	0.4	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.6
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.7
1070	0.2	0.25	0.04	0.03	0.03	-	0.04	0.03	0.03	-	99
1100	0.95		0.05~0.4	0.05	-	-	0.1	-	0.05	0.15	Remains
3003	0.6	0.7	0.05~0.2	1.0~1.5	-	-	0.1	-	0.05	0.15	Remains
3004	0.3	0.7	0.25	1.0~1.5	0.8	-	0.25	-	0.05	0.15	Remains
3005	0.6	0.7	0.3	1.0~1.5	0.2~0.6	0.1	0.25	0.1	0.05	0.15	Remains
3105	0.6	0.7	0.3	0.3~0.8	0.2~0.8	0.2	0.4	0.1	0.05	0.15	Remains
5052	0.25	0.4	0.1	0.1	2.2~2.8	0.15~0.35	0.1	-	0.05	0.15	Remains
5083	0.4	0.4	0.1	0.4~0.1	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Remains
5754	0.4	0.4	0.1	0.5	2.6~3.6	0.3	0.2	0.15	0.05	0.15	Remains
5005	0.3	0.7	0.2	0.2	0.5~1.1	0.1	0.25	-	0.05	0.15	Remains
5086	0.4	0.5	0.1	0.2~0.7	3.5~4.5	0.05~0.25	0.25	0.15	0.05	0.15	Remains
6063	0.2~0.6	0.35	0.1	0.1	0.45~0.9	0.1	0.1	0.1	0.05	0.15	Remains
6041	0.4~0.8	0.7	0.15~0.4	0.15	0.04~0.35	0.04~0.35	0.25	0.15	0.05	0.15	Remains

Market ApplicationMarket application
5052 alloy aluminum plate is widely used in the manufacture of fuel tanks, oil pipes and transportation vehicles, ship sheet metal parts, instruments, street lamp brackets and rivets, hardware products, electrical enclosures, molds, etc. It can also be used for low load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as fuel tanks, gasoline or lube oil conduits, various liquid containers and other small load parts made with deep drawing: Wire is used to make rivets.
