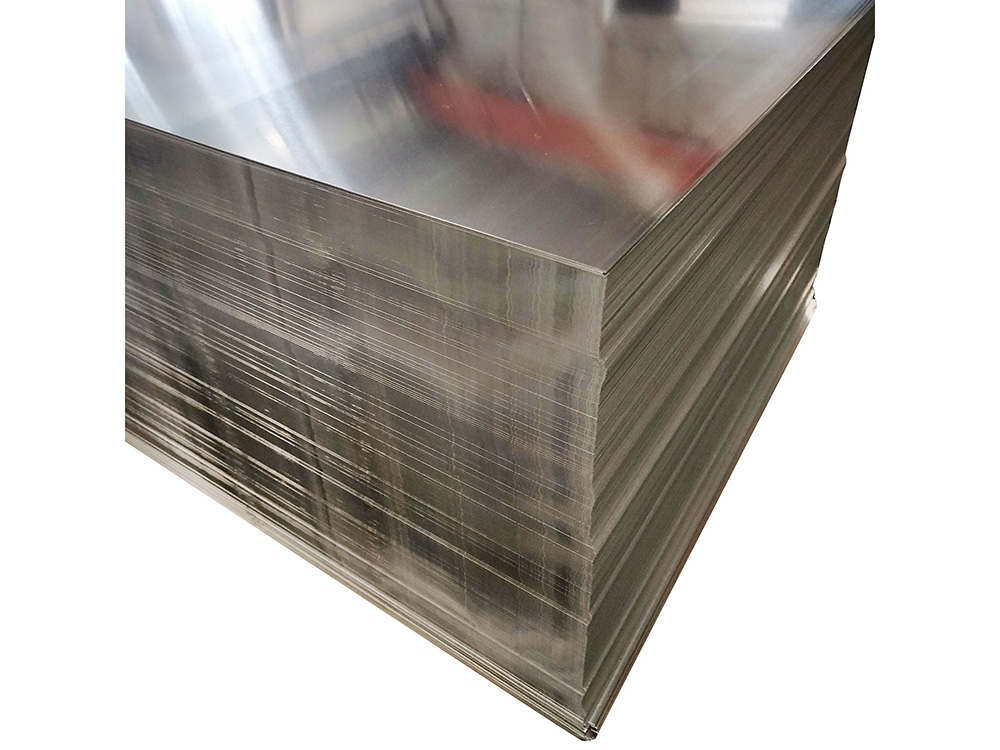

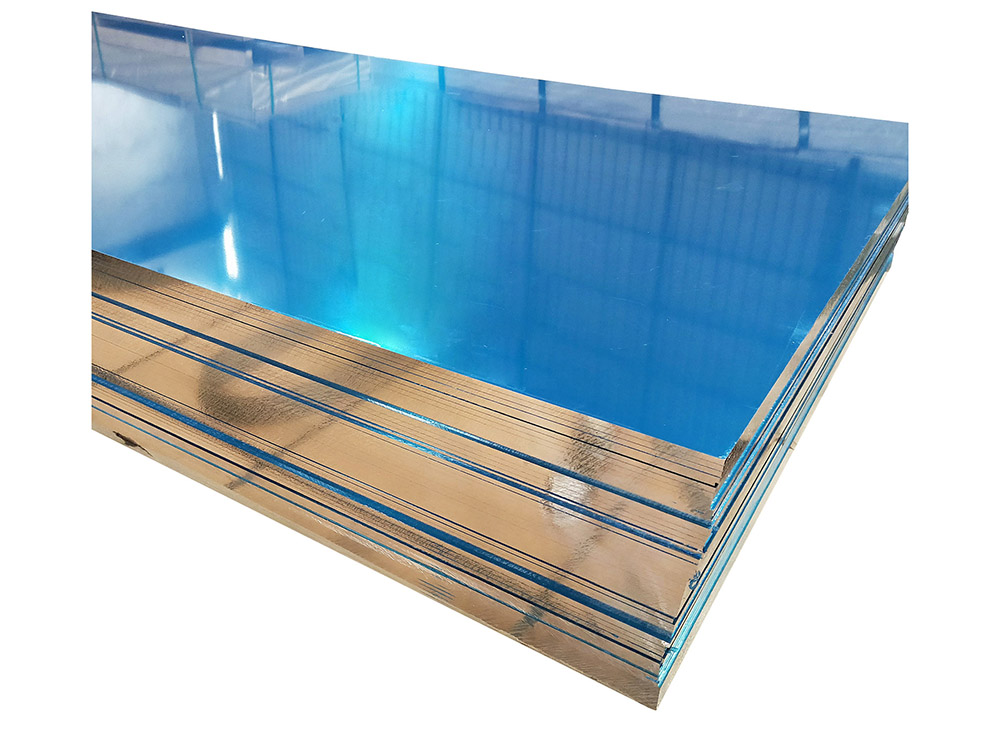

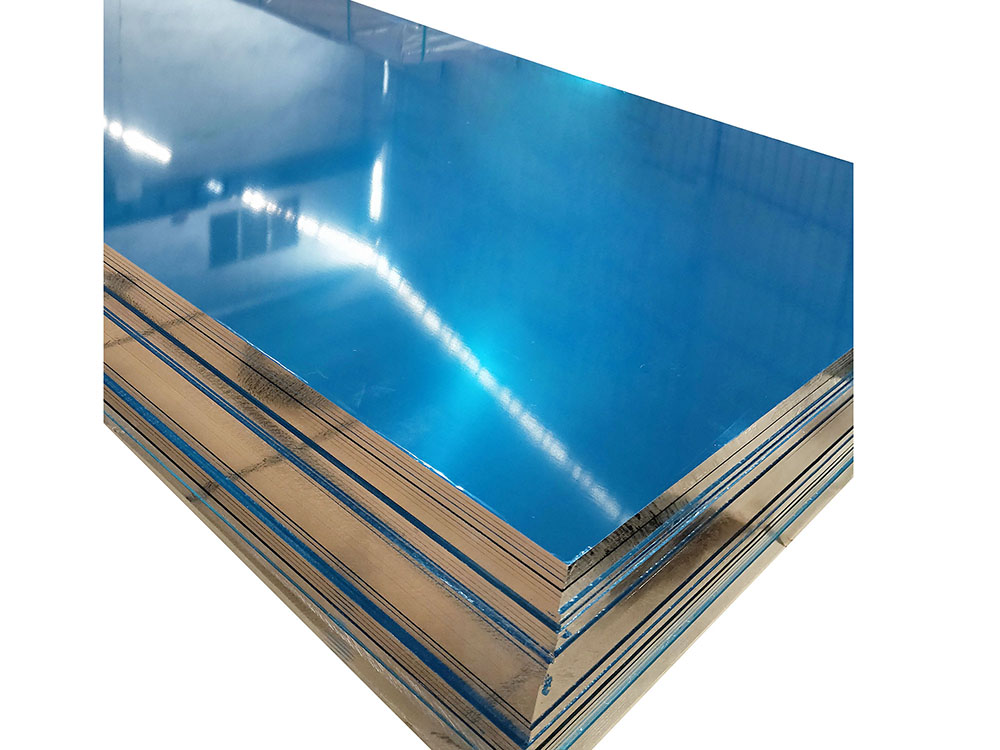

3003 Alloy Aluminum Sheet Temper H12/H22/Aluminum plate | aluminum sheet metal


3003 aluminum alloy is a typical Al-Mn alloy with good formability, very good corrosion resistance and weldability. It is commonly used in the manufacture of power battery casings in light-weight vehicles, cookware, food storage devices, and tanks on transportation equipment. , warehouse, sheet metal pressure vessels and pipes.




Product introductionaluminum she

Mechanical properties:Tensile strength (σb): 170~305MPa
Conditional yield strength σ0.2 (MPa)≥65
Modulus of elasticity (E): 69.3~70.7Gpa
The annealing temperature was 345 °C.


Product Description
Tempering:O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34H36,H38,H111,H112,H114,H 116,H321
Surface:mill,bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc
Thickness: 0.15-500mm;
Width: 20-1300mm;
Length: 500-6000mm or above;
Thickness tolerance: + 0.05mm;
Width / length tolerance: + 2mm;
Minimum quantity: 5-10 tons;

Aluminum Circle Plate

Aluminum Circle Plate for sale

Aluminum Circle Plate supplier


aluminum coil metal in china

aluminum coil metal for sale



Market application

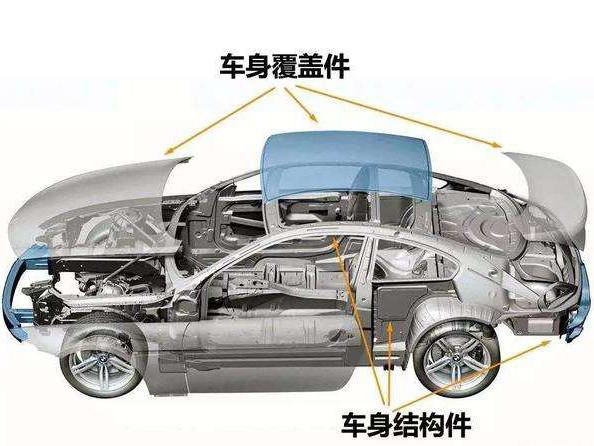

Hot-rolled 3003 aluminum plate typical use: power battery casing, automobile heat shield, fuel tank, water tank, automobile skid plate, battery explosion-proof valve, battery cover, automobile interior, signage, cans, medical equipment, etc.;

quality aluminum coil metal

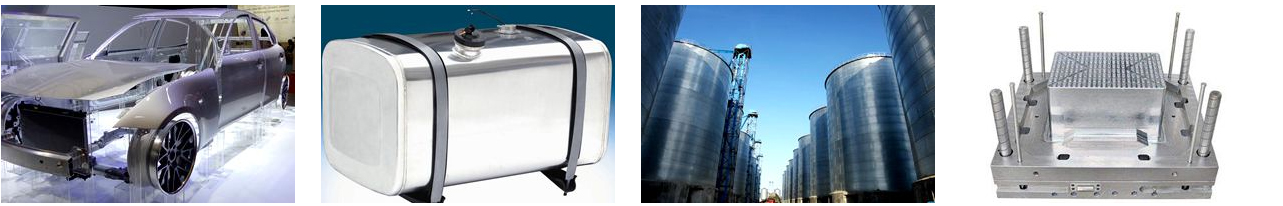

       Car Lightweight                                  fuel tank                                      Aluminum bin                           Aluminum mold


Five Advantages

  1. Complete product range: Has a complete range of aluminum, aluminum, aluminum tape products
  2. 15 years of production and sales experience: Customized products can be cut as required, good quality and good price

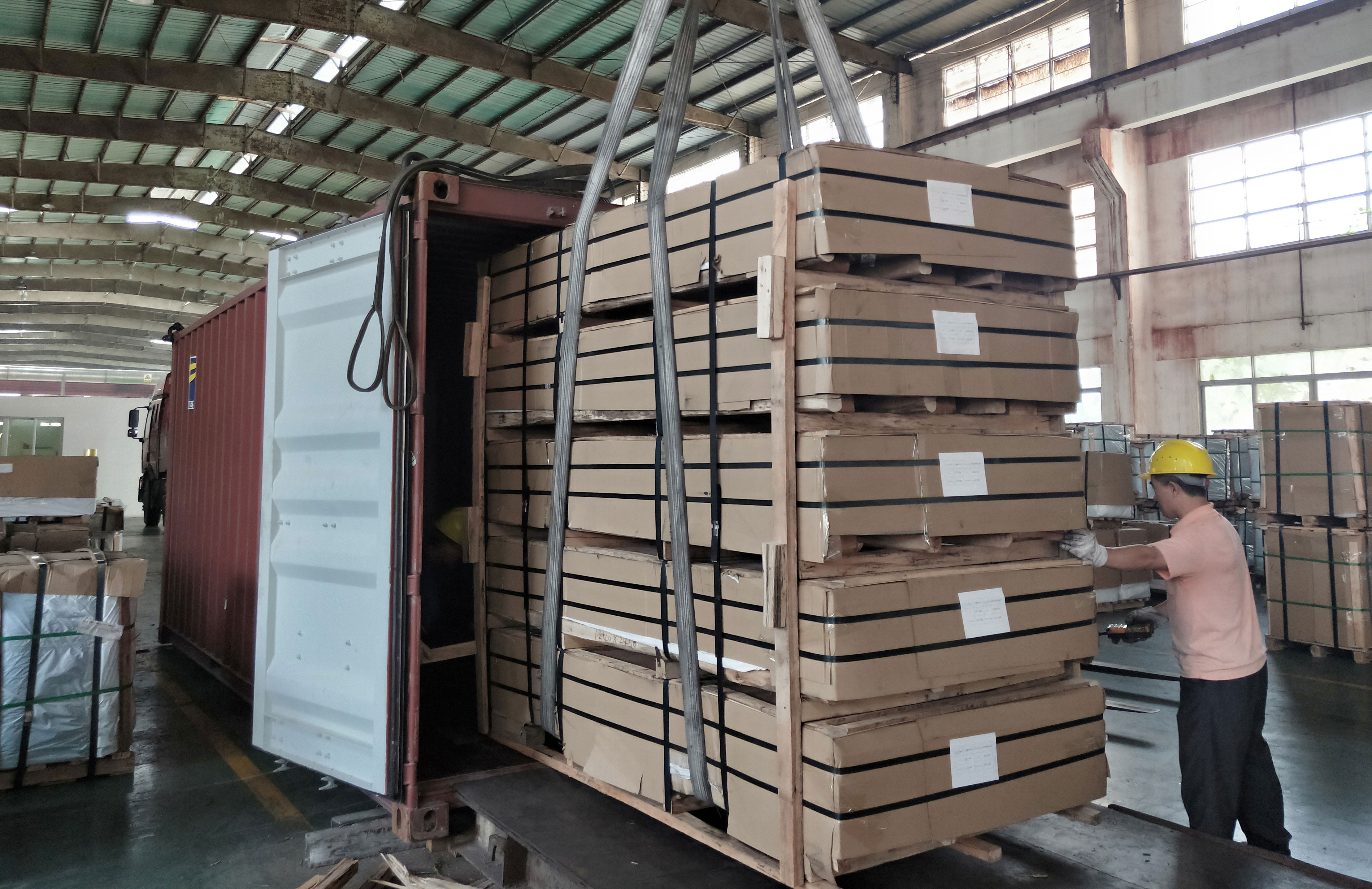

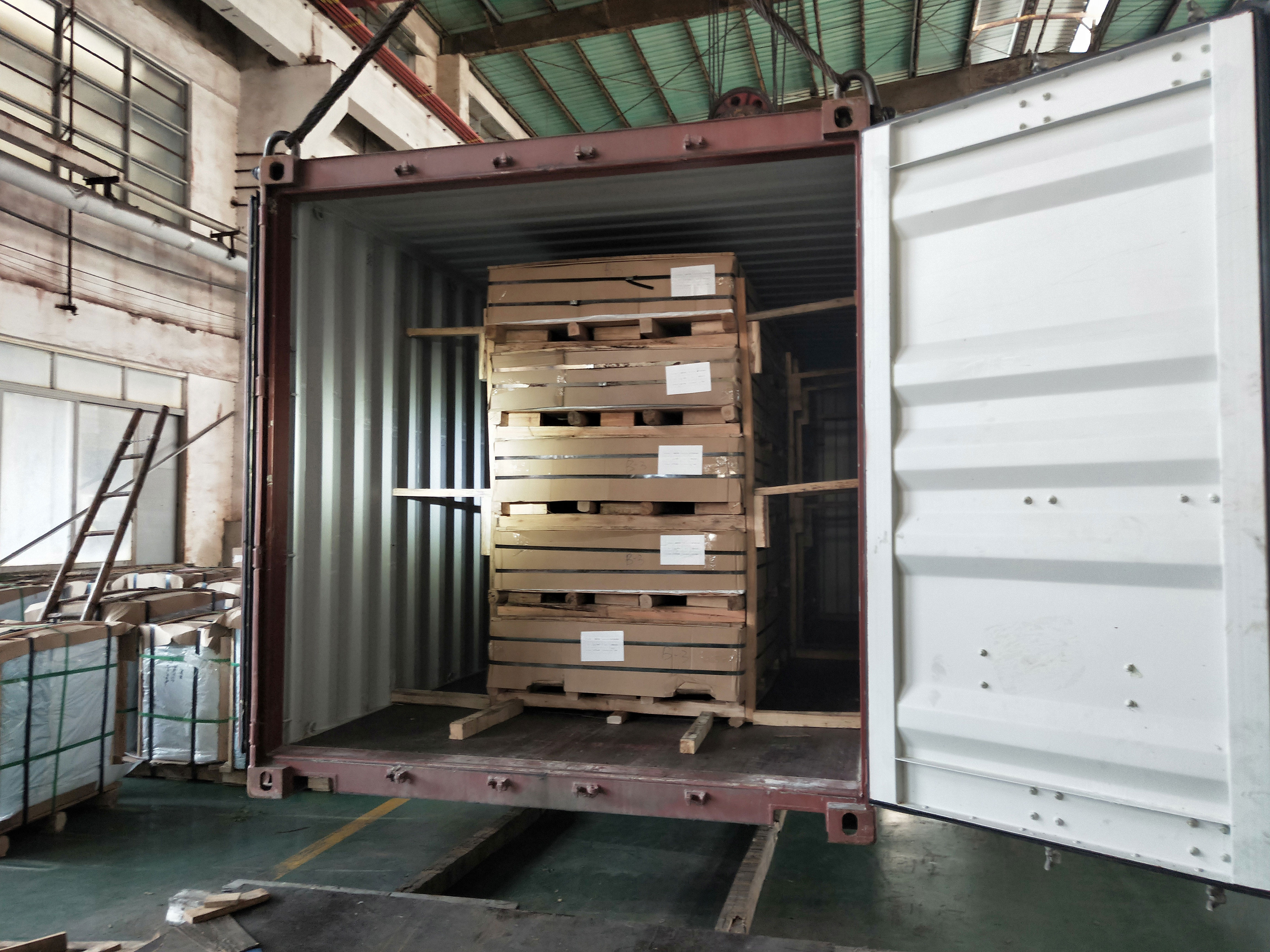

  3. Excellent distribution team: The company has 10 delivery vehicles, ready to ship

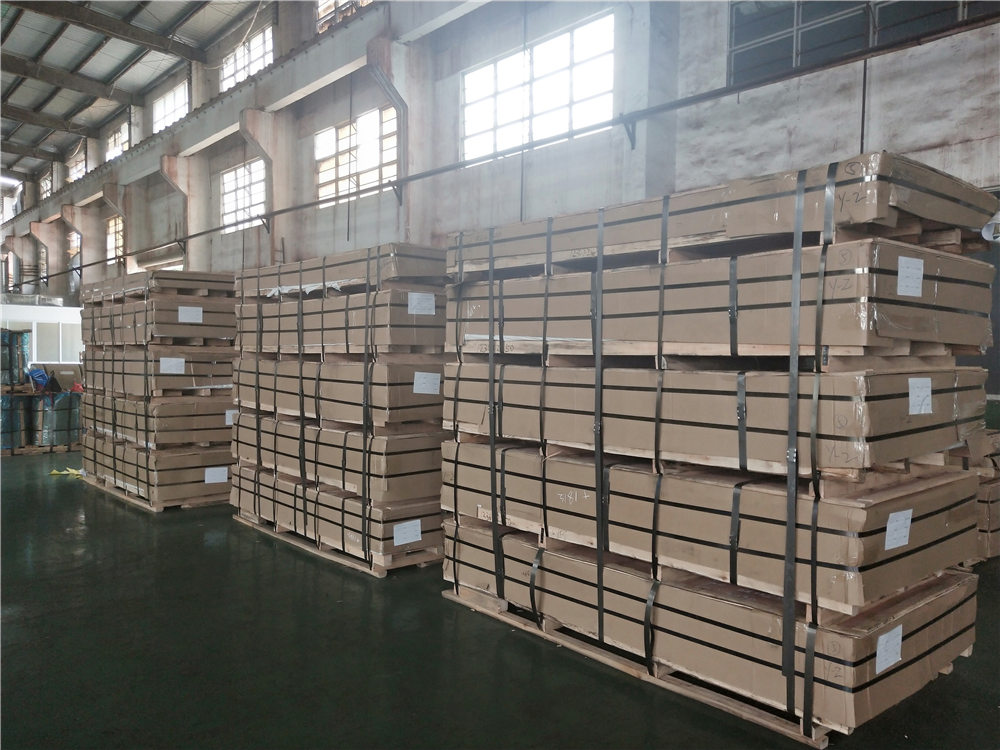

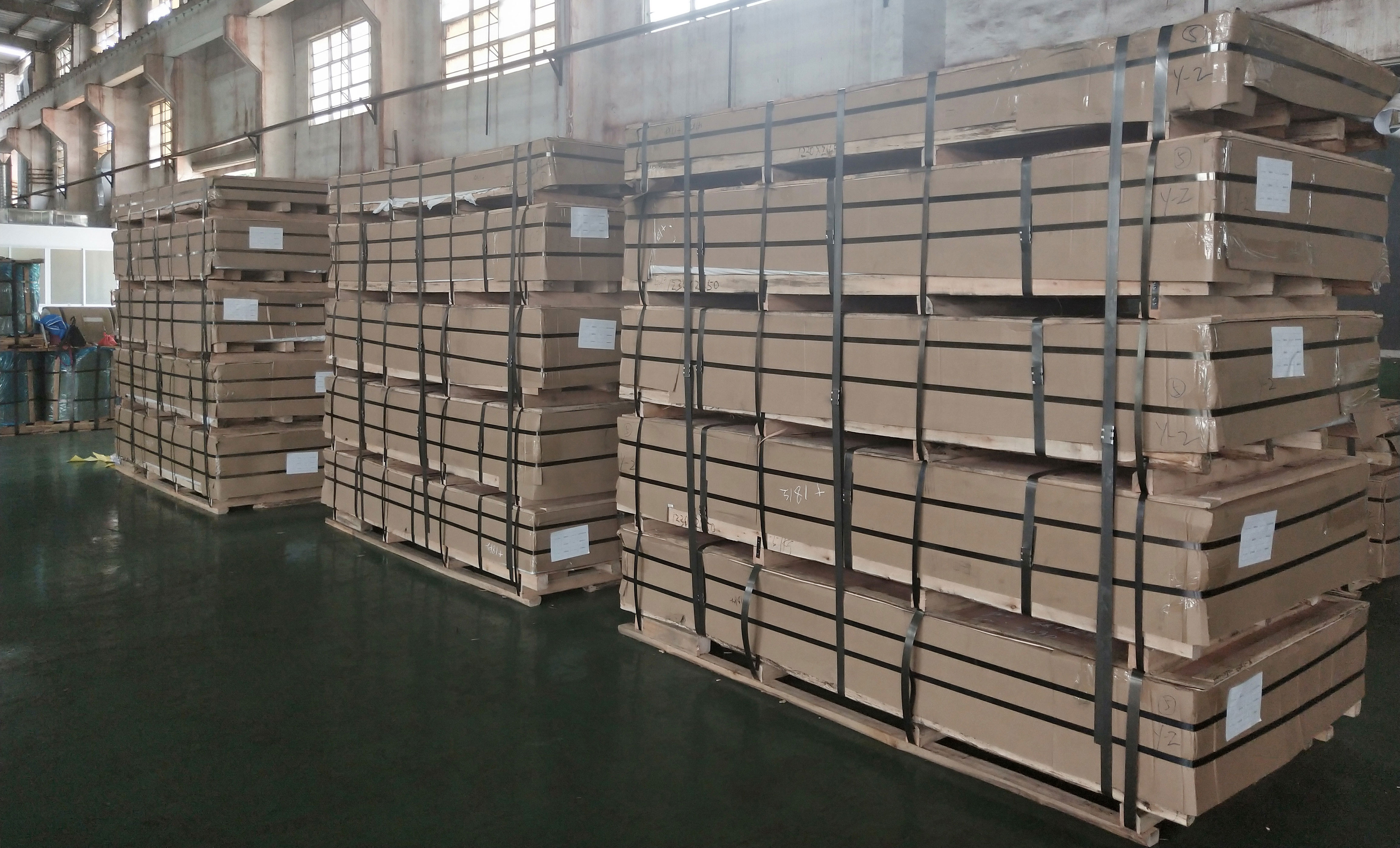

  4. Sufficient spot sale: Stock spot nearly 60,000 tons

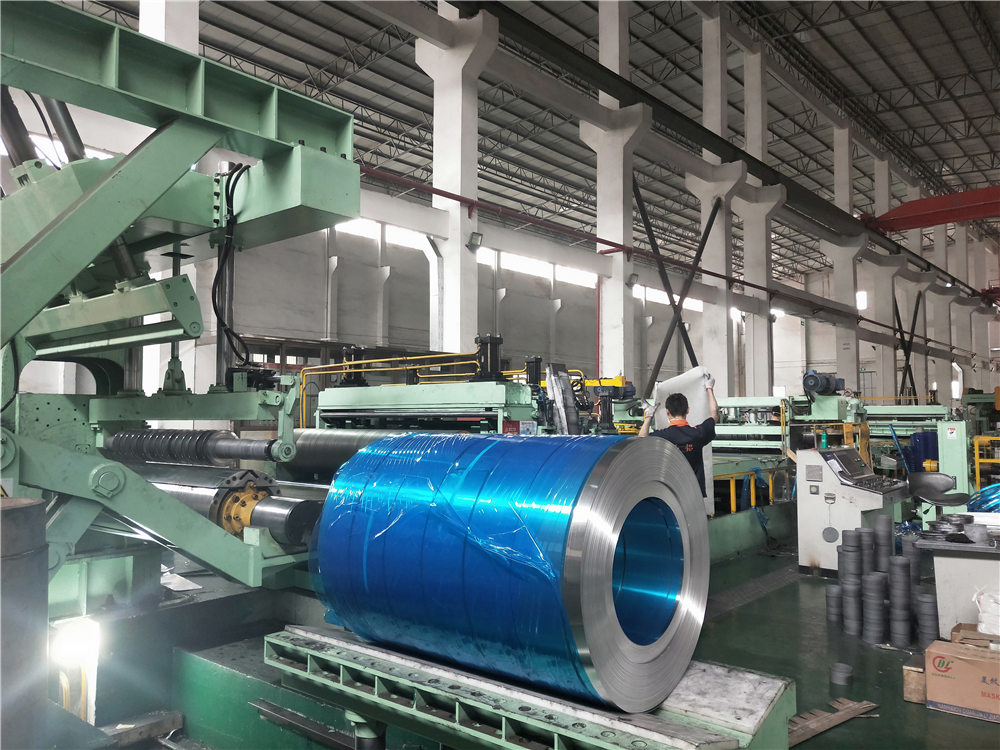

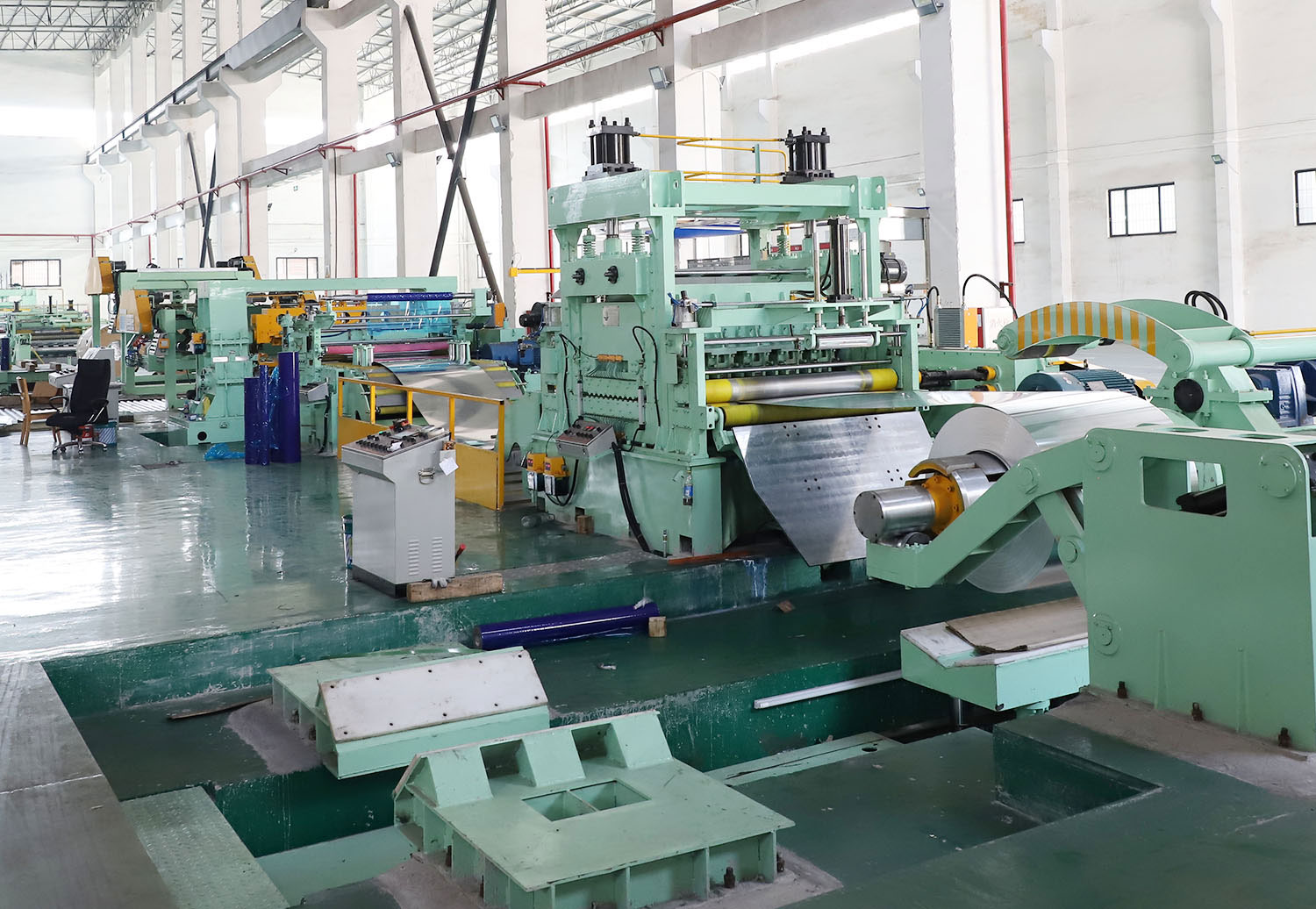

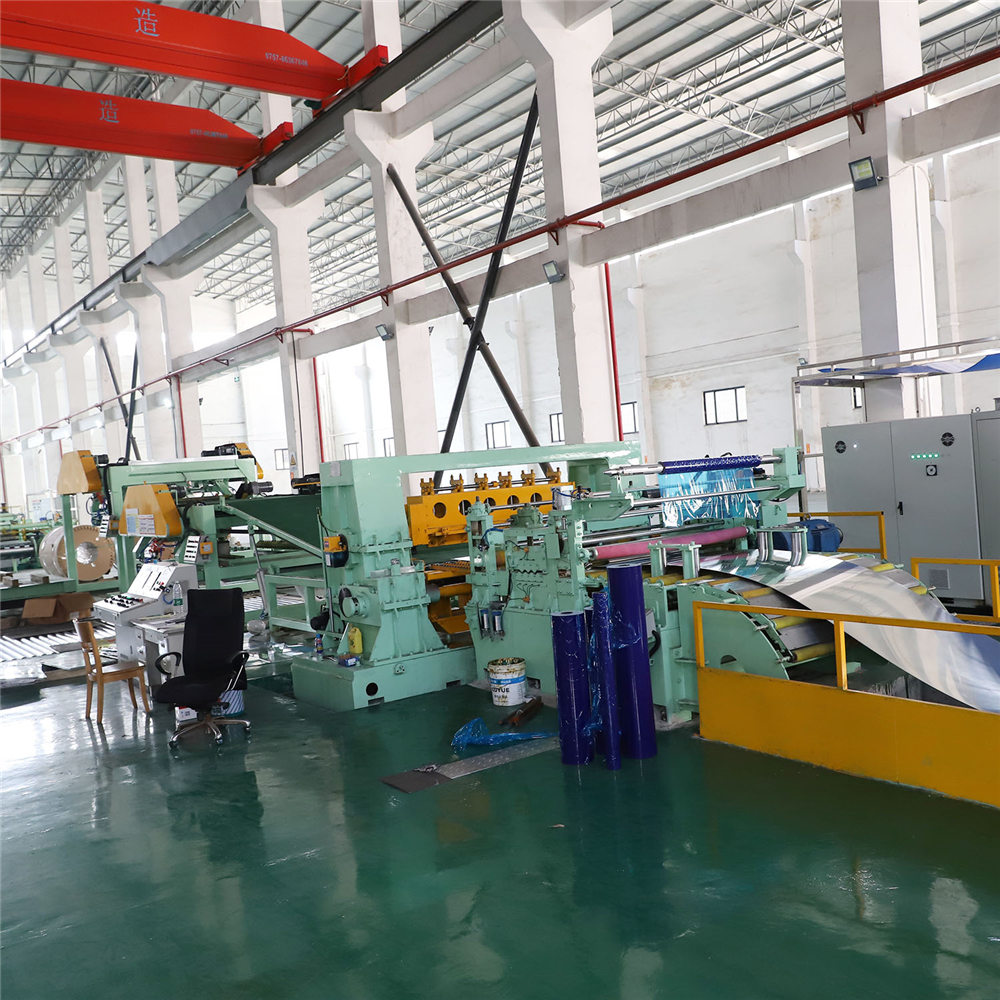

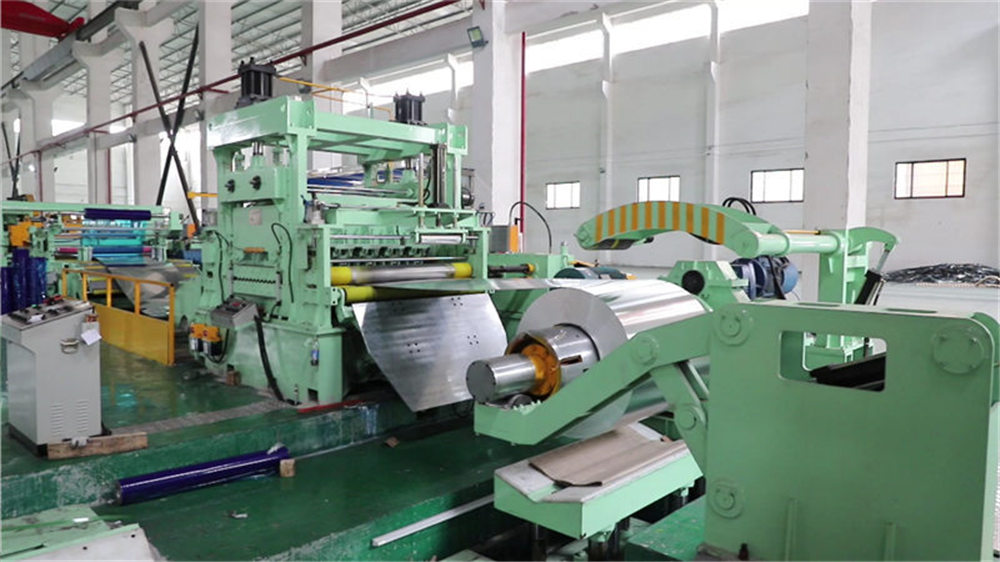

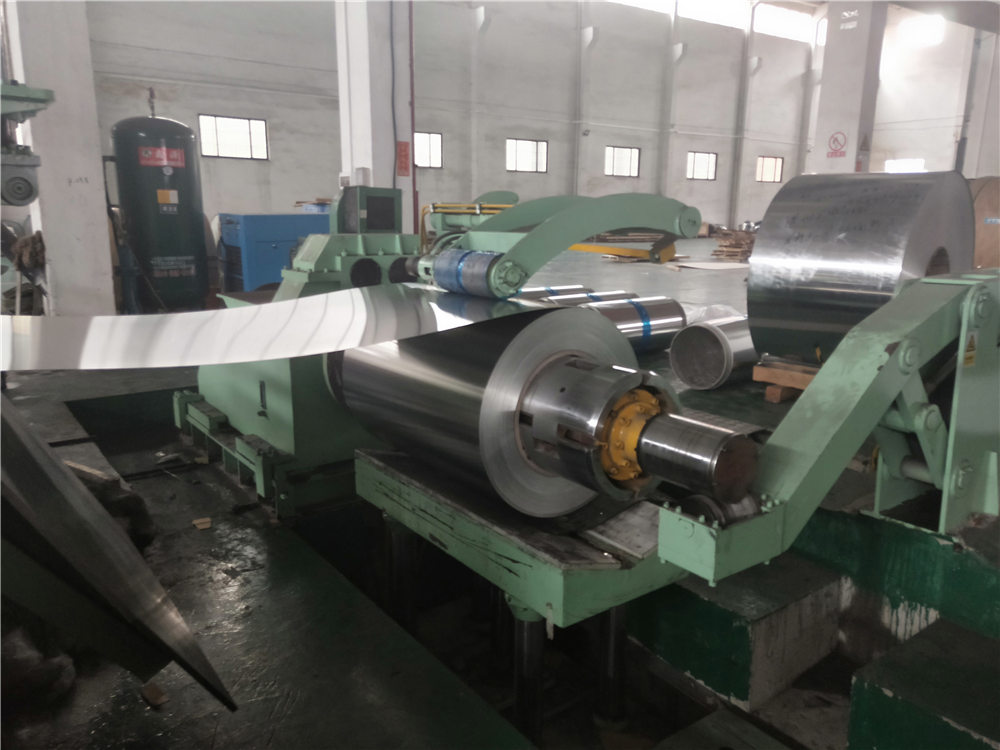

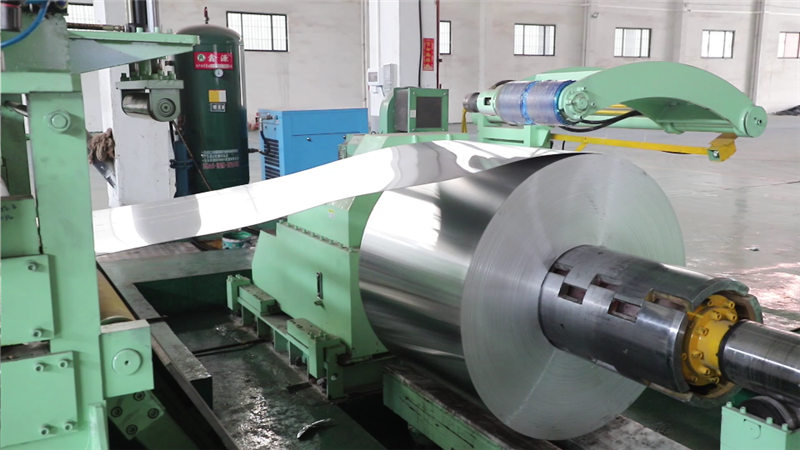

  5. Production equipment and production line: The company has a slitter and tablet scale precision
aluminum sheet metal















Chemical Compositon of Aluminum
Grade Chemical Composition(%) Others AI
Si Fe Cu Mn Mg Cr Zn Ti Single Tol 99.5
1050 0.25 0.4 0.05 0.05 0.05 - 0.05 0.03 0.03 - 99.6
1060 0.25 0.35 0.05 0.03 0.03 - 0.05 0.03 0.03 - 99.7
1070 0.2 0.25 0.04 0.03 0.03 - 0.04 0.03 0.03 - 99
1100 0.95 0.05~0.4 0.05 - - 0.1 - 0.05 0.15 Remains
3003 0.6 0.7 0.05~0.2 1.0~1.5 - - 0.1 - 0.05 0.15 Remains
3004 0.3 0.7 0.25 1.0~1.5 0.8 - 0.25 - 0.05 0.15 Remains
3005 0.6 0.7 0.3 1.0~1.5 0.2~0.6 0.1 0.25 0.1 0.05 0.15 Remains
3105 0.6 0.7 0.3 0.3~0.8 0.2~0.8 0.2 0.4 0.1 0.05 0.15 Remains
5052 0.25 0.4 0.1 0.1 2.2~2.8 0.15~0.35 0.1 - 0.05 0.15 Remains
5083 0.4 0.4 0.1 0.4~0.1 4.0~4.9 0.05~0.25 0.25 0.15 0.05 0.15 Remains
5754 0.4 0.4 0.1 0.5 2.6~3.6 0.3 0.2 0.15 0.05 0.15 Remains
5005 0.3 0.7 0.2 0.2 0.5~1.1 0.1 0.25 - 0.05 0.15 Remains
5086 0.4 0.5 0.1 0.2~0.7 3.5~4.5 0.05~0.25 0.25 0.15 0.05 0.15 Remains
6063 0.2~0.6 0.35 0.1 0.1 0.45~0.9 0.1 0.1 0.1 0.05 0.15 Remains
6041 0.4~0.8 0.7 0.15~0.4 0.15 0.04~0.35 0.04~0.35 0.25 0.15 0.05 0.15 Remains

Commonly used in power battery casings, ships, ships, vehicle materials, automotive and aircraft board welding parts, pressure vessels requiring strict fire protection, refrigeration equipment, air conditioning tubes, cans, TV towers, drilling equipment, mechanical parts, transportation Equipment, armor, etc. It is also widely used in kitchen utensils, food and chemical products, storage tanks, tanks for transporting liquid products, various pressure vessels and pipes processed by thin plates, heat exchangers, rivets, welding wires, washing machine cylinders, etc.



Aluminum frame for automobile frame machined aluminum parts suppliers

Aluminum frame for automobile frame

Automotive lightweight aluminum Aluminum Fabrication Parts suppliers

Automotive lightweight aluminum

Car wheel cnc aluminum machining suppliers

Electric appliance

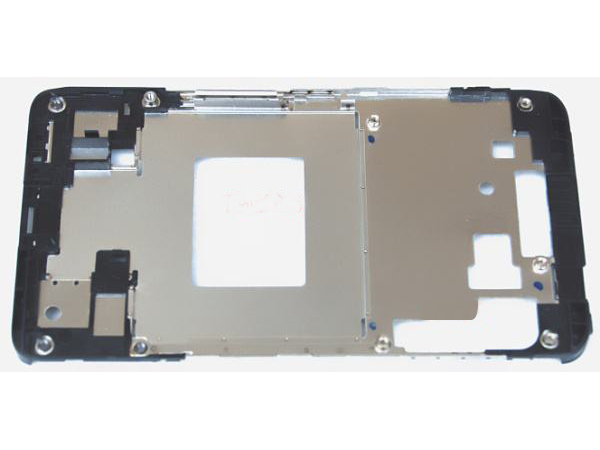

Stamped aluminum plate for mobile phones aluminum profile manufacturers in china
